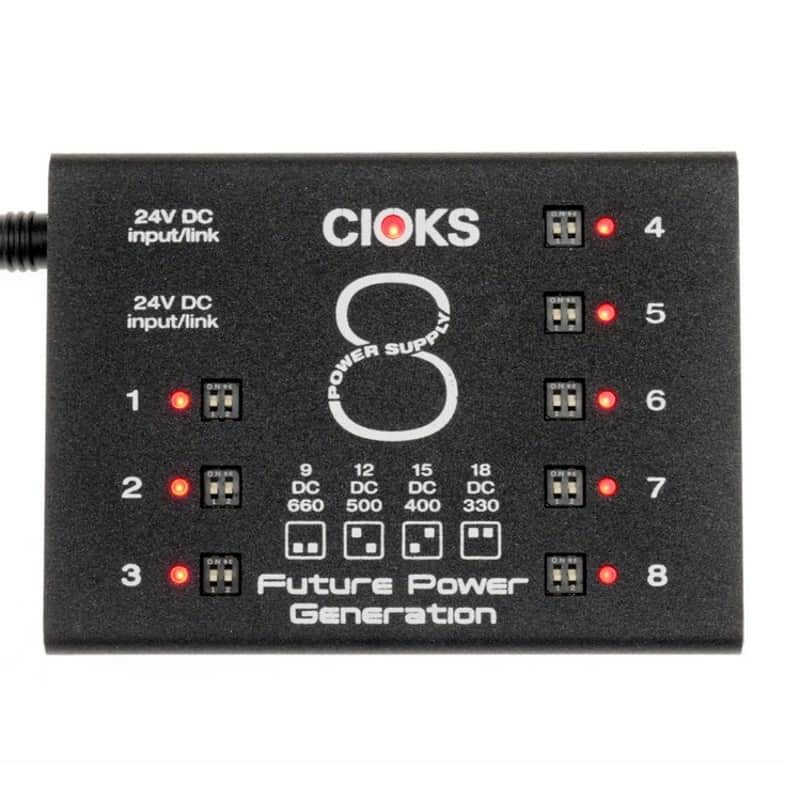

Cioks C8E Expander Kit

The largest power supply extender in the Future Power Generation.

CIOKS 8 is the company's largest switch-mode power supply extender and it features 8 isolated outlets which each deliver 9V DC with 660mA. All eight outlets offer four switchable voltages (9V, 12V, 15V and 18V).

Features:

CIOKS 8 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7

Ultra-low noise achieved by multistage filtering

8 isolated DC-outlets, 6W each

660mA at 9V DC on each outlet

4 selectable voltages on each outlet

Global overload status LED

Mounting hardware for Pedaltrain and Templeaudio boards included

Compatible with CIOKS GRIP for drill-free mounting on Pedaltrain boards

12 Flex cables included

24V DC Link cable included

Designed in Denmark, assembled in Poland

Outlets 1-8:

9V DC / 660mA

12V DC / 500mA

15V DC / 400mA

18V DC / 330mA each

If you are looking for a super powerful power supply setup to power a large pedalboard, the combination of CIOKS DC7 and CIOKS 8 will definitely be an awesome solution as this combo will give you 15 isolated outlets in total with 4 switchable voltages on each outlet plus a 5V USB outlet to charge your smartphone or tablet (courtesy of DC7).

Flex cables included:
Total of 12 Flex cables are included. The user is able to power 11 pedals of the BOSS standard type with the included Flex kit.

1x 1015 – Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)

3x 1030 – Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)

2x 1050 – Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 50cm (black)

1x 2050 – Type 2 - 5,5/2,1mm DC plug, centre positive, L-shape, 50cm (red)

1x 4050 – Type 4 - 5,5/2,5mm DC plug, centre positive, L-shape, 50cm (green)

1x 5050 – Type 5 - 3,5mm Jack plug, tip positive, L-shape, 50cm (black)

1x 1035 – Split Flex type 1, 30+50cm (black)

1x 1533 – 3-way daisy chain Flex type 1, 30-30-50cm (black)
