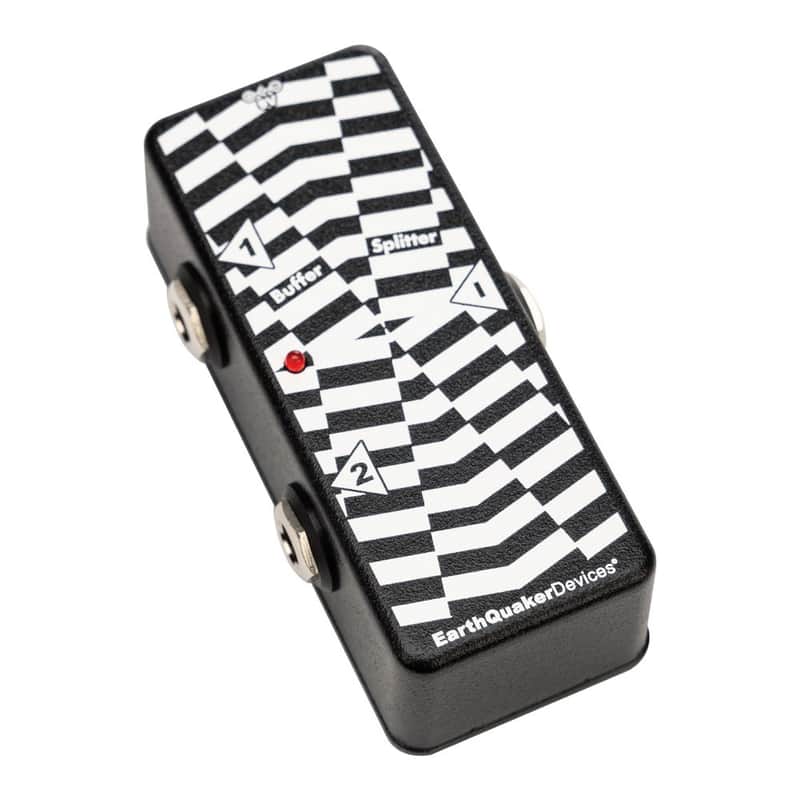

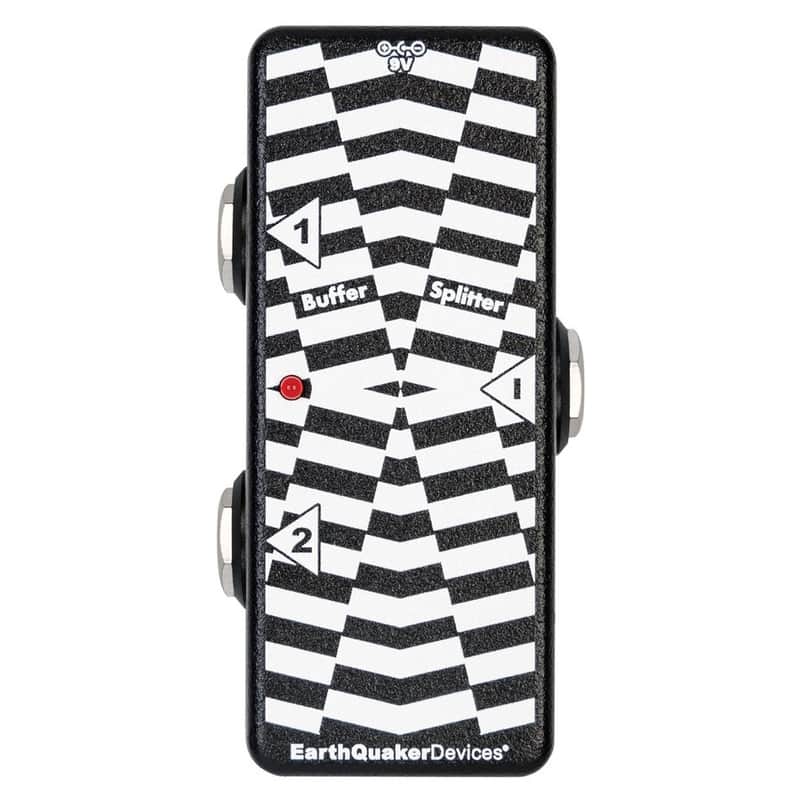

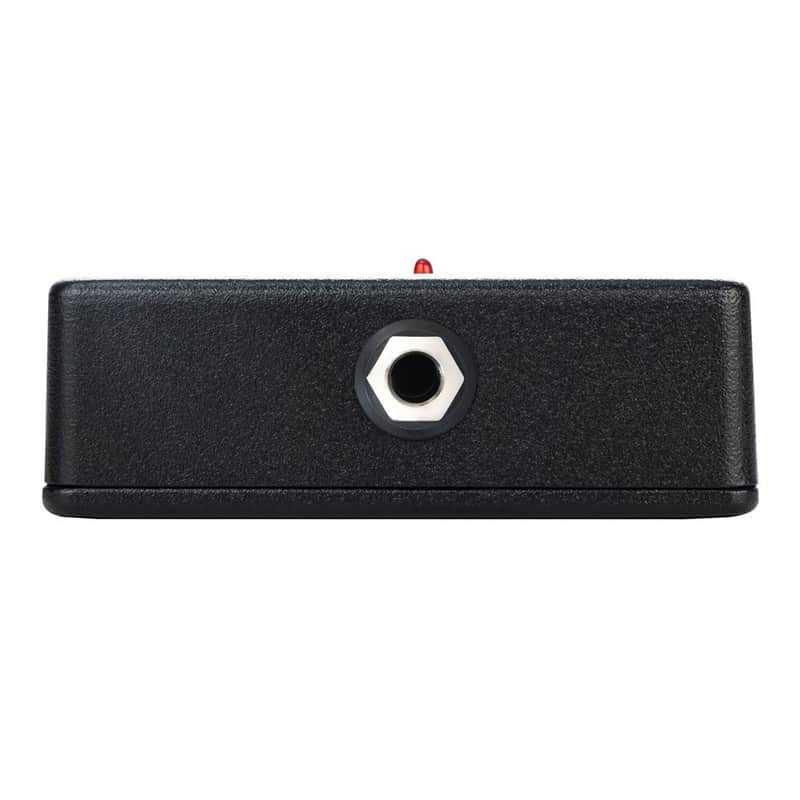

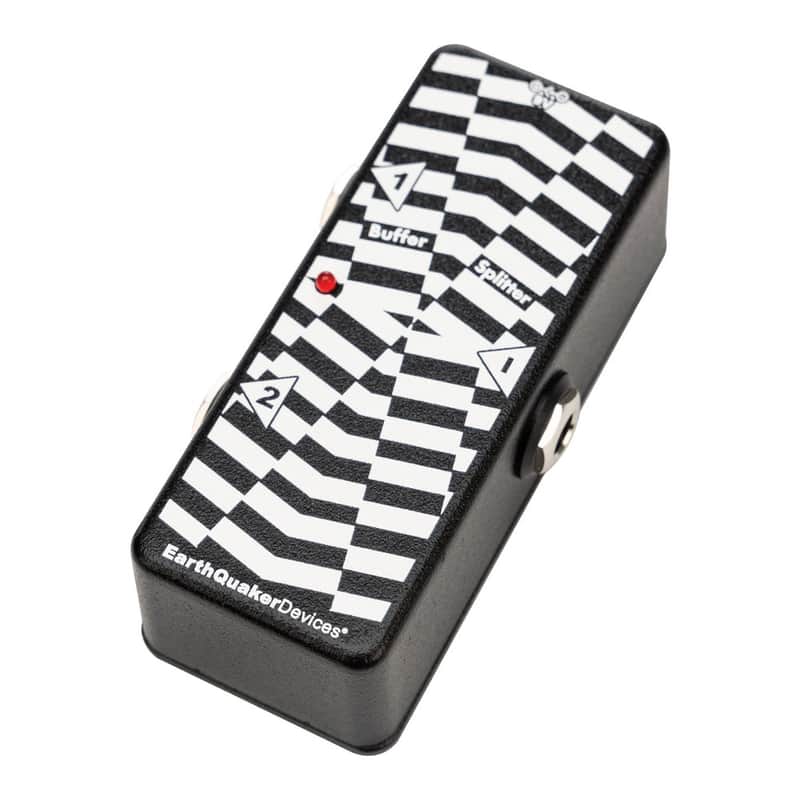

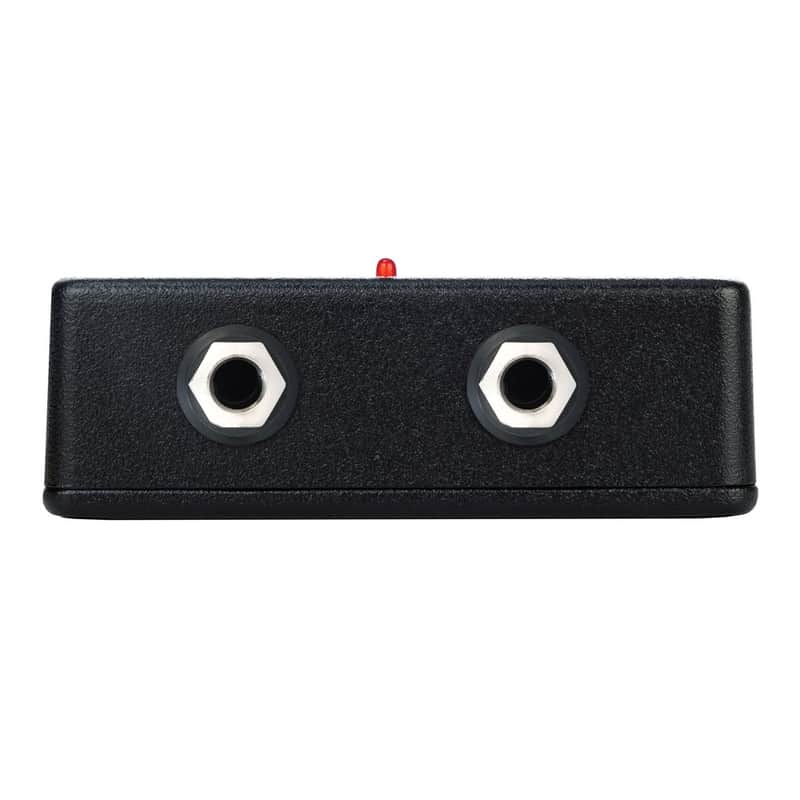

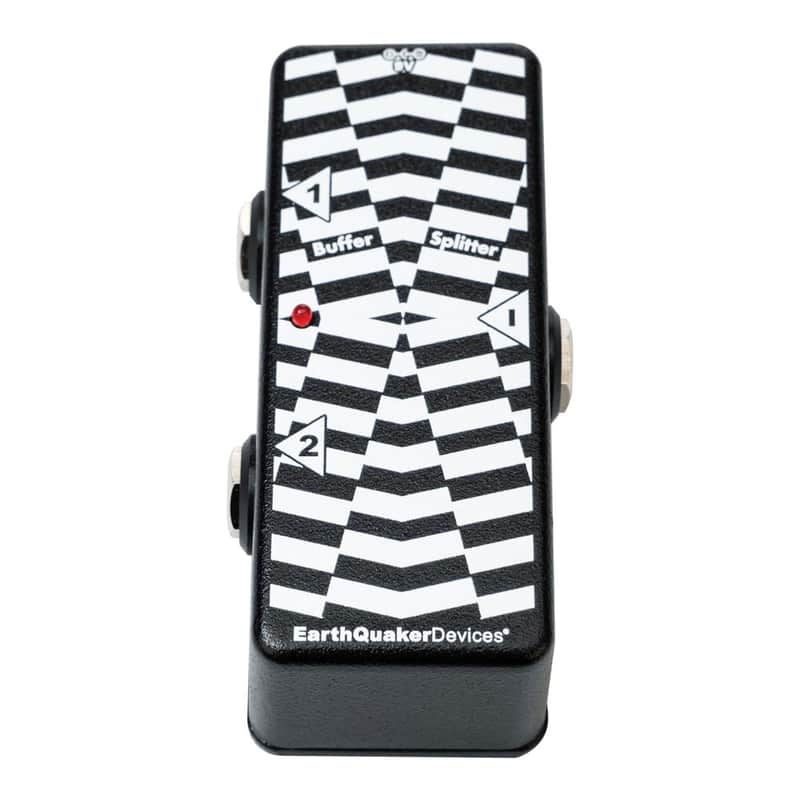

New EarthQuaker Devices Buffer Splitter Guitar Pedal

This item is new, in box!

From Earthquaker:

A buffer is an important tool to combat tone loss with long cable runs or in signal chains running lots of true bypass pedals. The EarthQuaker Devices Buffer/Splitter uses the same great high 1 Mohm input impedance and low 100 ohm output impedance found in our Buffer/Preamp to restore your tonal integrity! This buffer is designed to both maintain high end and give your low end a subtle, yet powerful, little kick for some added dimension!

What’s better than a single output buffer? A dual output buffer, that’s what! Use the EarthQuaker Devices Buffer/Splitter to split your signal into two and send them anywhere you like! Two amps! Turn a mono signal into a stereo signal! Send one output to your effects and use the other as a dry-through! Remove your tuner from the signal path… you get the idea!

Dimensions
3.6875 x 1.8125 x 1.8125 in. (94 x 46 x 46 mm)

Current Draw
15 mA

Input Impedance
1 MΩ

Output Impedance
100 Ω

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel (not included). We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
