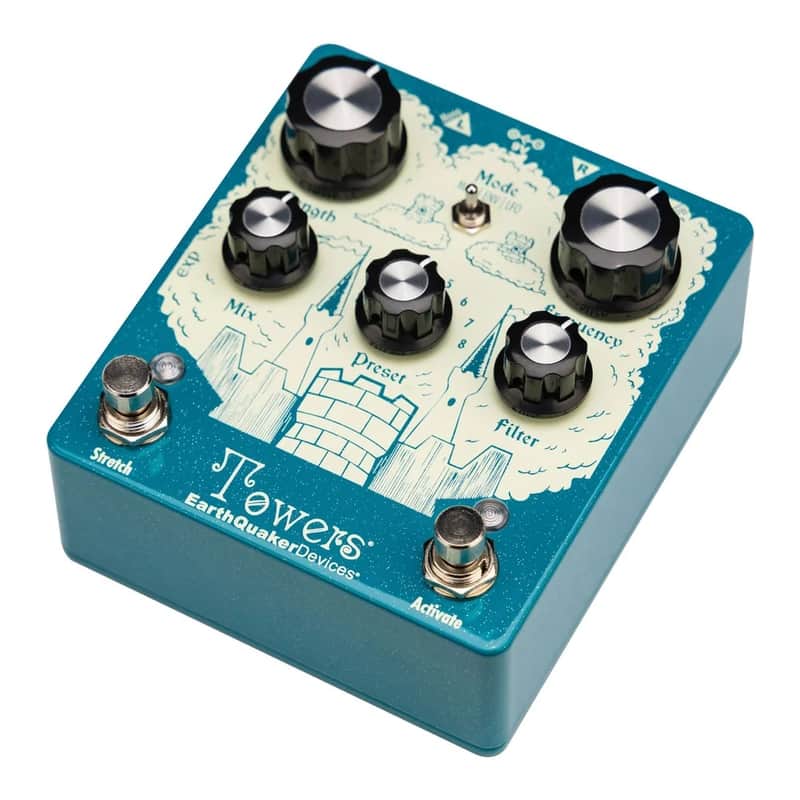

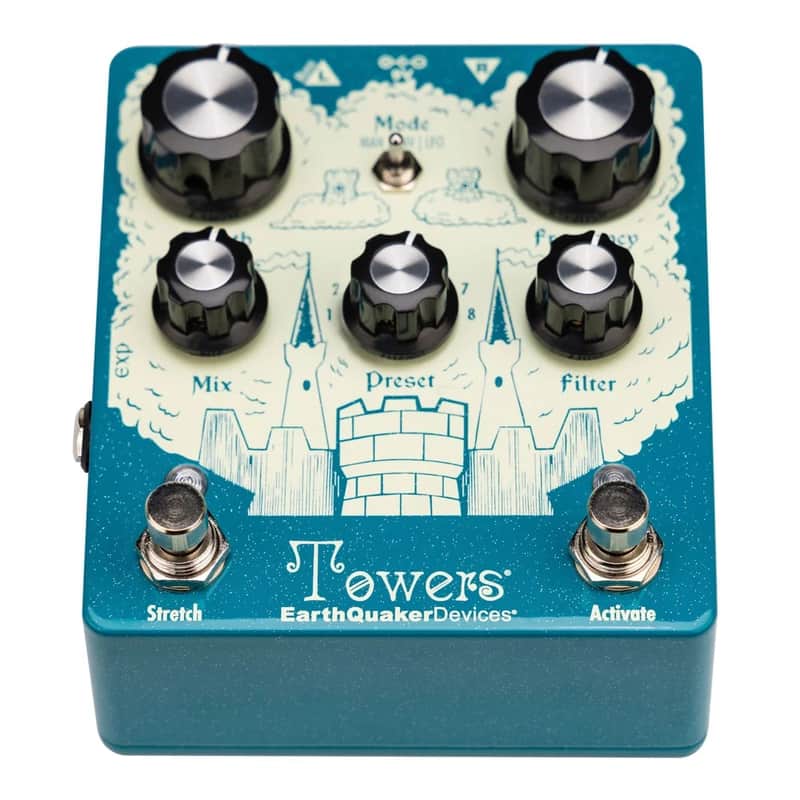

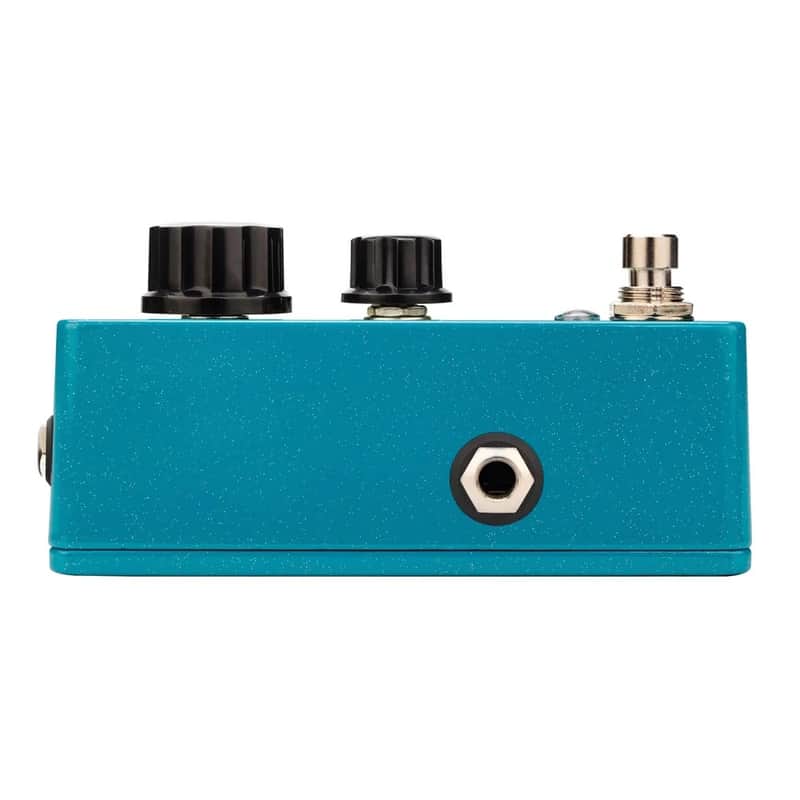

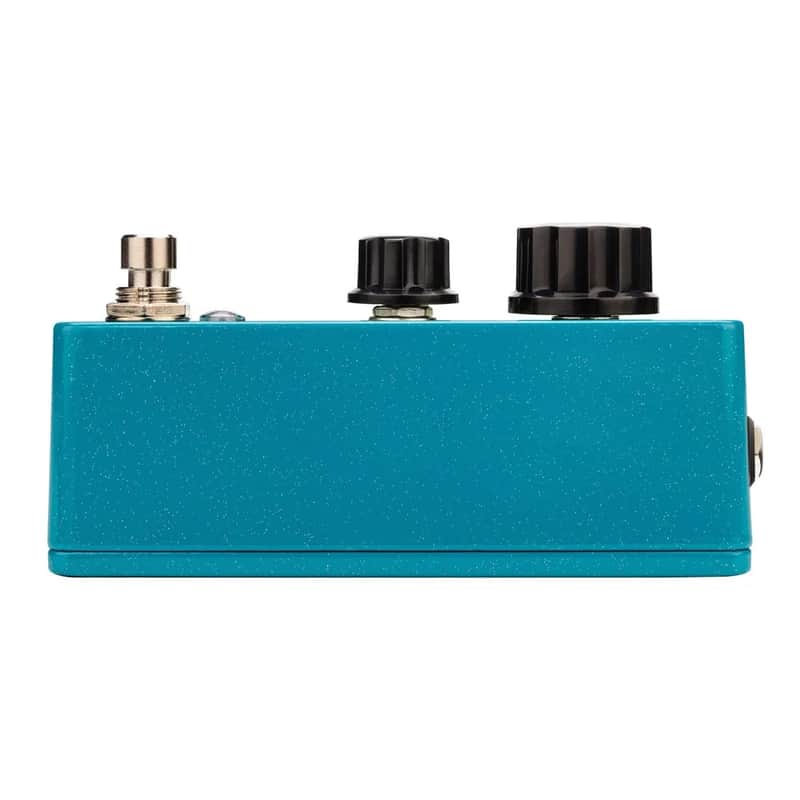

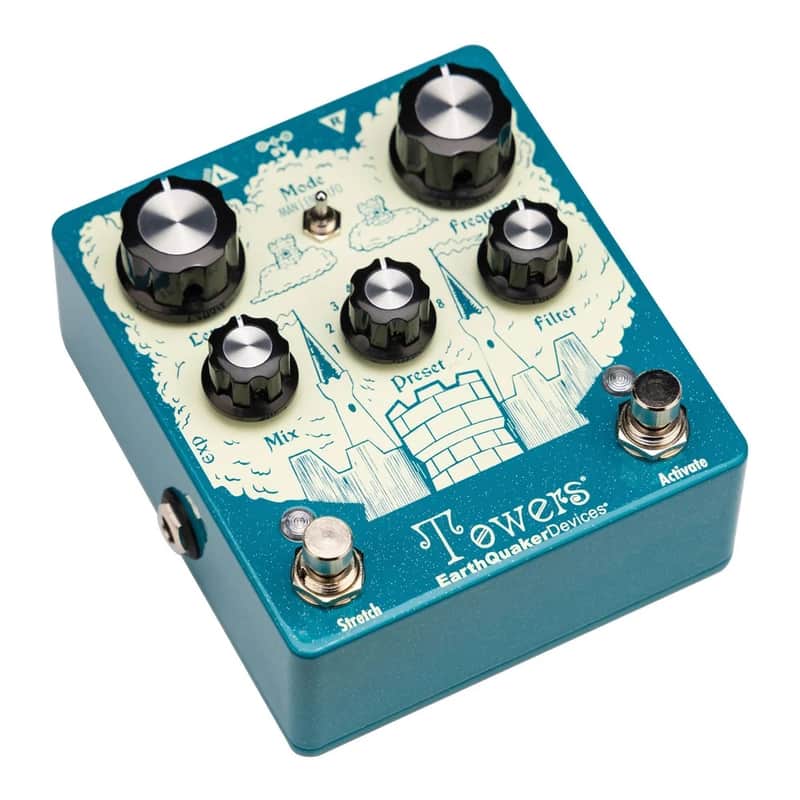

Earthquaker Towers Reverberant Filter

This item is new, in box!

From Earthquaker:

Towers teleports your sound into a vast stereophonic expanse, weaving it into its unique resonant filtered feedback networks. Reflections hang in the air and move in and out of a sprawling multidimensional soundscape, where they don’t just fade away—they radiate, breathe and drift endlessly into the void.

The filter frequency offers three distinct modes of navigation: Manual Mode puts the player in charge of the filter frequencies.  Envelope Mode where playing dynamics breathe and morph into everchanging filter movements. LFO Mode where the player surrenders control to a slow-moving oscillator that sweeps across the stereo field.

Three Distinct Modes of Operation
Manual Mode
The filter frequency is manually changed by adjusting the Frequency control. This works across the stereo field, with the left channel opposite the right.

Envelope Mode
The filter frequency is changed with an envelope that is controlled by picking dynamics. In this mode, the Frequency control adjusts the sensitivity of the envelope.

LFO Mode
The filter frequency is controlled by a slow moving LFO, and the Frequency control adjusts the rate. This mode also sweeps across the stereo field creating a slow panning filter effect.

The filter frequency is your spectral guide through these hazy realms, offering three distinct modes of navigation. In Manual Mode, you are the commander of your own frequency. By turning the Frequency control, you can create opposing movements between left and right channels. Envelope Mode transforms playing dynamics into filter movement, where each strike of the strings becomes a catalyst for harmonic resonance while the Frequency control maintains proper sensitivity. LFO Mode surrenders control to a slow-moving oscillator that sweeps across the stereo field, and the Frequency adjusts the rate at which it sways.

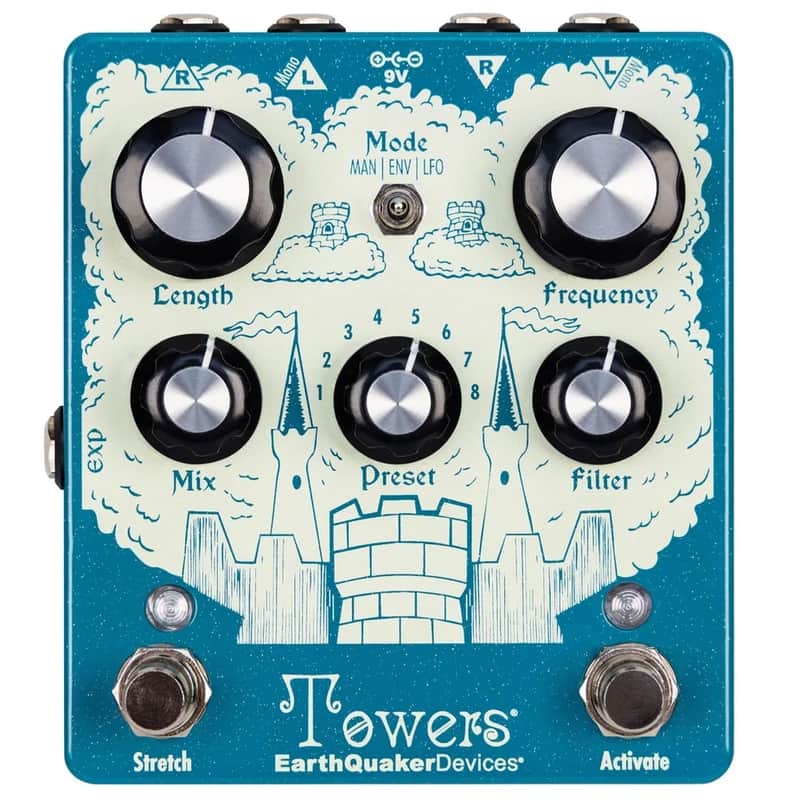

Controls
Mode: This is a 3-position toggle switch that changes the mode of operation.

Mix: This sets the overall level of the effect, balancing the ethereal with the earthly.

Frequency: This controls the filter frequency and has several different functions depending on which mode is selected.

Preset: Selects which user preset to use in preset mode, allowing you to recall your favorite mystical configurations.

Activate Footswitch: This turns the effect on and off.

Tech Specs
Dimensions: 4.75 x 4.25 x 2.50 in. (121 x 108 x 64 mm) with knobs
Current Draw: 85 mA
Input Impedance: 500 kΩ
Output Impedance: 100 Ω
EXP Jack Internal Connections: Tip= Wiper (CV), Ring= 3.3V, Sleeve= Ground

Power: This device takes a standard 9-volt DC power supply with a 2.1 mm negative center barrel (not included). We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Artwork: Artwork by Dave Neeson
