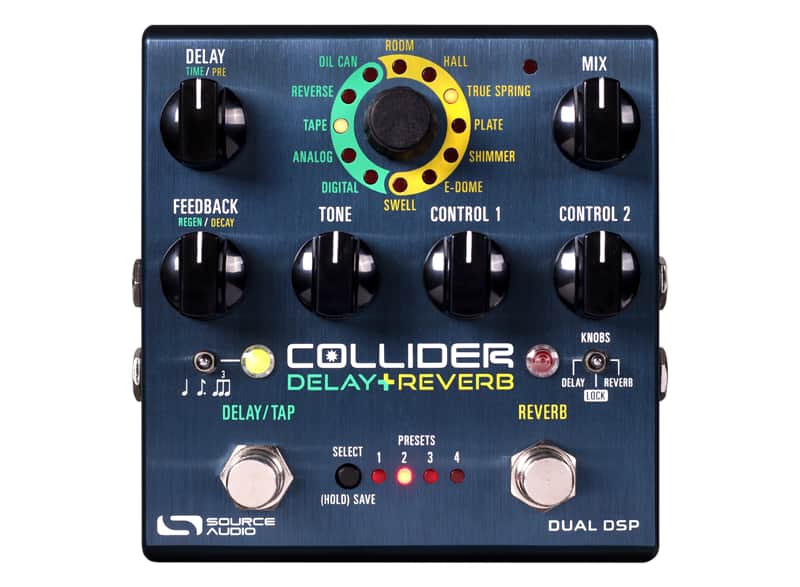

Source SA263 Collider Delay+reverb

Please note: Source Audio no longer includes power supplies with their pedals, and some of their packaging still says otherwise — we apologize for any confusion!

Sleek Hardware Design & Processing Muscle

 - Source Audio President Roger Smith

Digital Delay: A pristine and unfiltered digital repeats.

Analog Delay: This delay engine reproduces the characteristic dark sound of bucket brigade analog delays.

Tape Delay: A detailed re-creation of classic moving-head tape delays. Repeats are bandwidth limited and have artifacts characteristic of tape delay, such as filtering, preamp saturation, noise, wow and flutter.

Reverse Delay: A classic reverse tape sound that became popular in 60s psychedelic rock. The TONE knob can create several overlapping reversed delays that fade in and fade out regularly to create a pulsing tremolo effect.

Oil Can Delay: This is a dark, jangly, warbling and distorted delay inspired by old oil can designs that previously appeared in the “Extended Delay Engines” on the Nemesis.

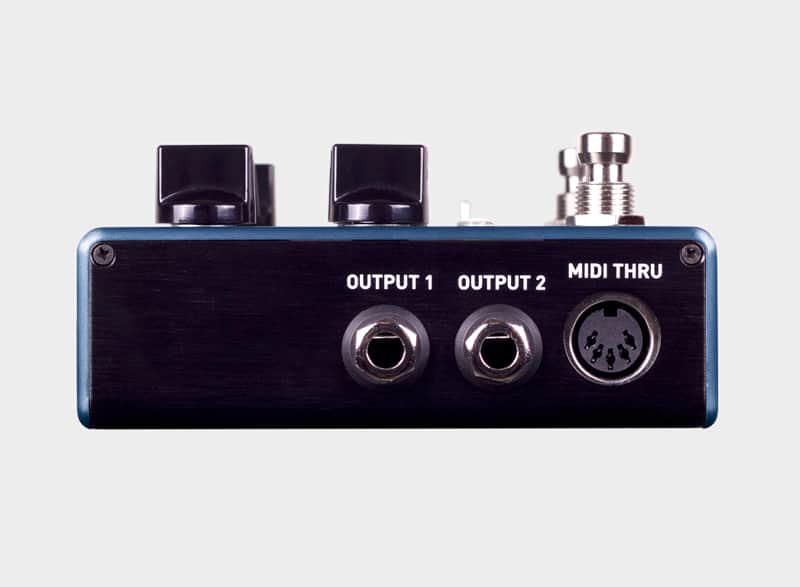

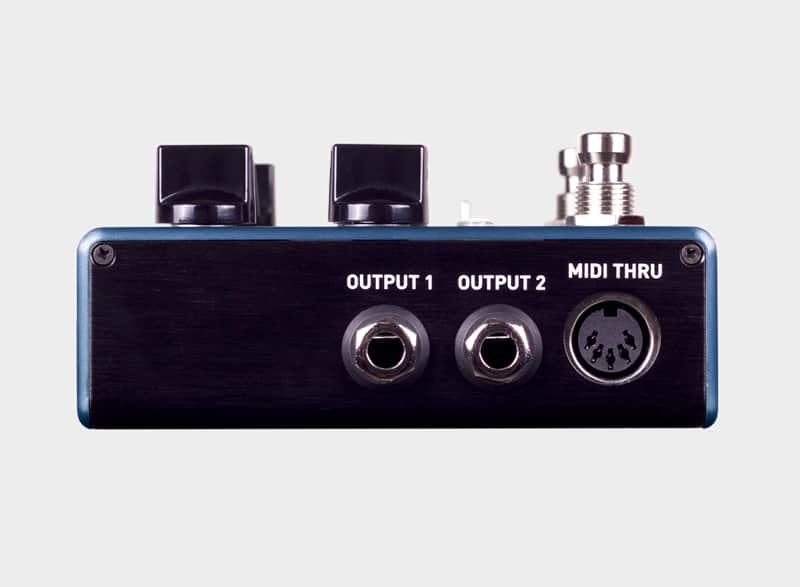

Stereo Inputs & Outputs – Create a lush stereo spread with true stereo inputs and outputs

Dual Processing – Features two completely independent processors – essentially providing two high-powered pedals in a single enclosure.

Compact Design – The extruded anodized aluminum housing, with its slim profile and small footprint, is built for the rigors of the road.

128 Presets – Save your favorite sounds with the touch of a button. Save up to 8 presets recallable with the pedal’s onboard controls, plus a total of 128 presets recallable with an external MIDI controller.

Tap Tempo ­– Tap in the delay time with the onboard tap tempo switch. Beat divisions include quarter notes, dotted eighth, and triplets

Knobs “Lock” Switch – Flip the KNOBS switch to the center position to lock your controls in place, protecting your settings from accidental bumps in a live setting.

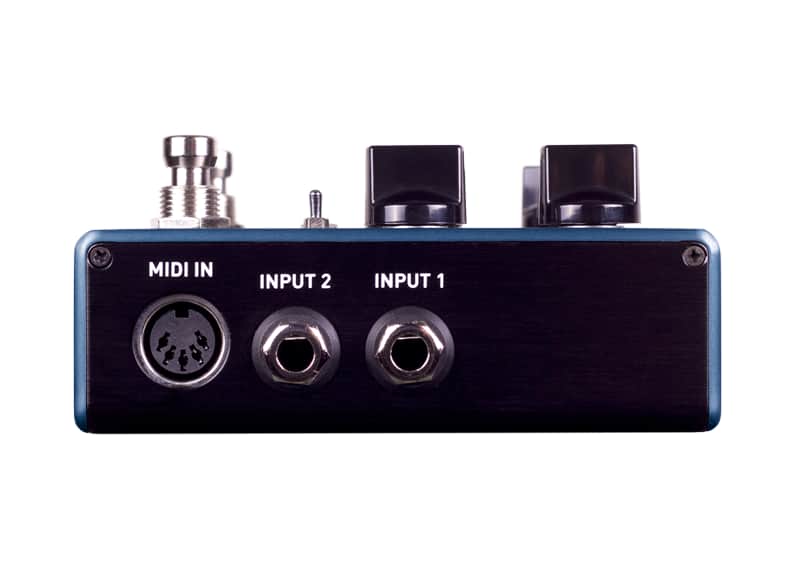

Complete MIDI Functionally – Send MIDI program change (PC), continuous controller (CC), or MIDI clock messages via the 5-pin MIDI DIN Input (also includes a MIDI Thru jack) or the USB port.

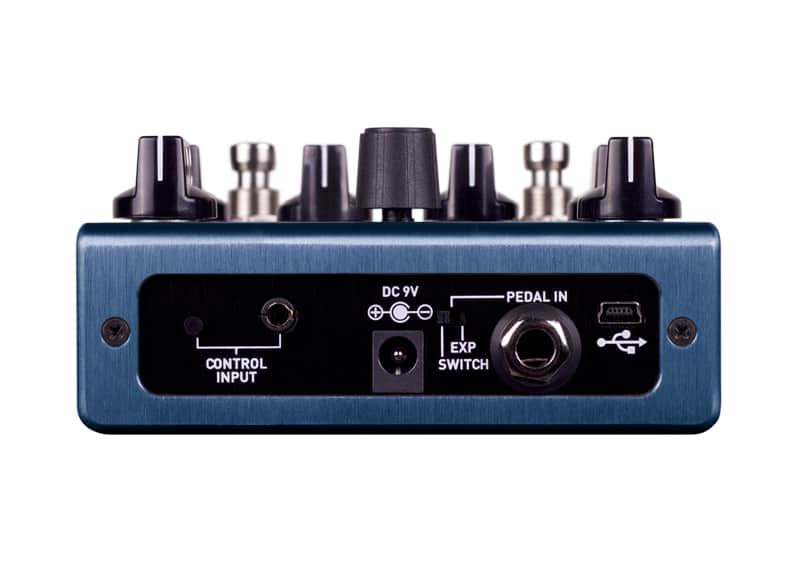

Expression Control – Easily configure the Collider to work with a variety of expression pedals and footswitches for various external control options

Discover Knob Positions – Ever wondered where the knobs were set in another preset? With "Knobs Action After", you can discover these knob positions by rotating the knob until you see the Control LED flash.

Includes 1/8” to 1/4” cable for Neuro Mobile App connection.

Power Consumption — 300mA (power supply not included)

USB port — Connects to Mac or Windows PC for MIDI control of firmware updates.

Brushed anodized aluminum housing.

Dimensions: L: 4.5 in./11.4cm x W: 4.5 in./11.4cm x H: 2 in./5.1cm (including knobs)

Wieght: 1 lb./0.45 kg.
